Performance Bosch M-Type Injection Pumps for Mercedes OM601, OM602, OM603, OM604, OM605 & OM606

High-performance mechanical diesel injection pumps with our own 7.0 mm and 9.0 mm pump elements

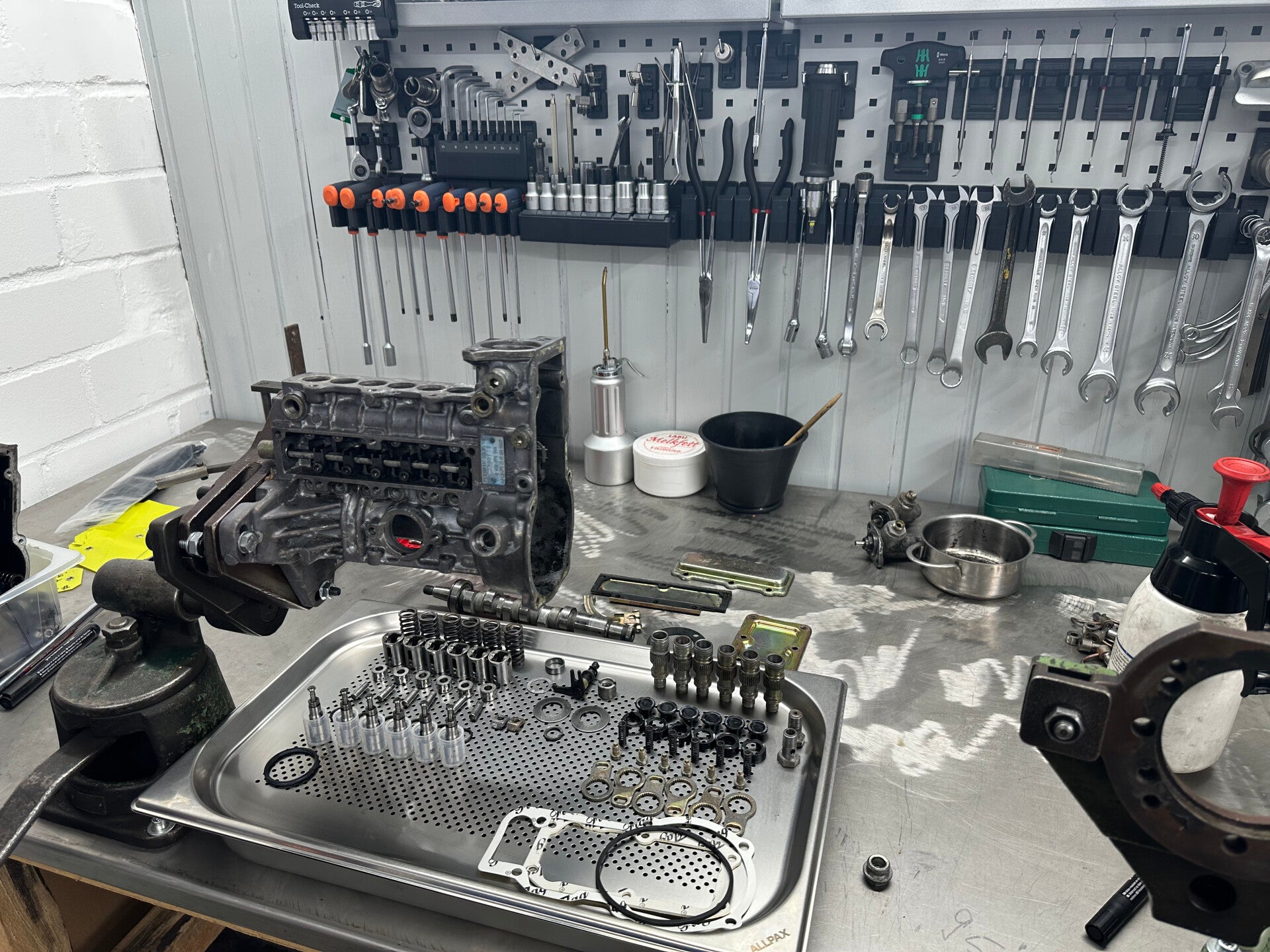

Einspritzpumpen Manufaktur NRW develops, rebuilds and calibrates performance-oriented mechanical Bosch M-type inline injection pumps for Mercedes-Benz diesel engines of the OM601, OM602, OM603, OM604, OM605 and OM606 families.

Our performance injection pumps are designed for applications ranging from responsive road engines and off-road vehicles to high-output OM605 and OM606 SuperTurboDiesel projects.

At the centre of our pump programme are our own specially selected and developed M-pump element configurations with:

7.0 mm pump elements

and

9.0 mm pump elements

The objective is not simply to deliver the largest possible quantity of fuel.

A properly built performance injection pump must deliver the required fuel quantity accurately, consistently and at the correct point within the available injection period.

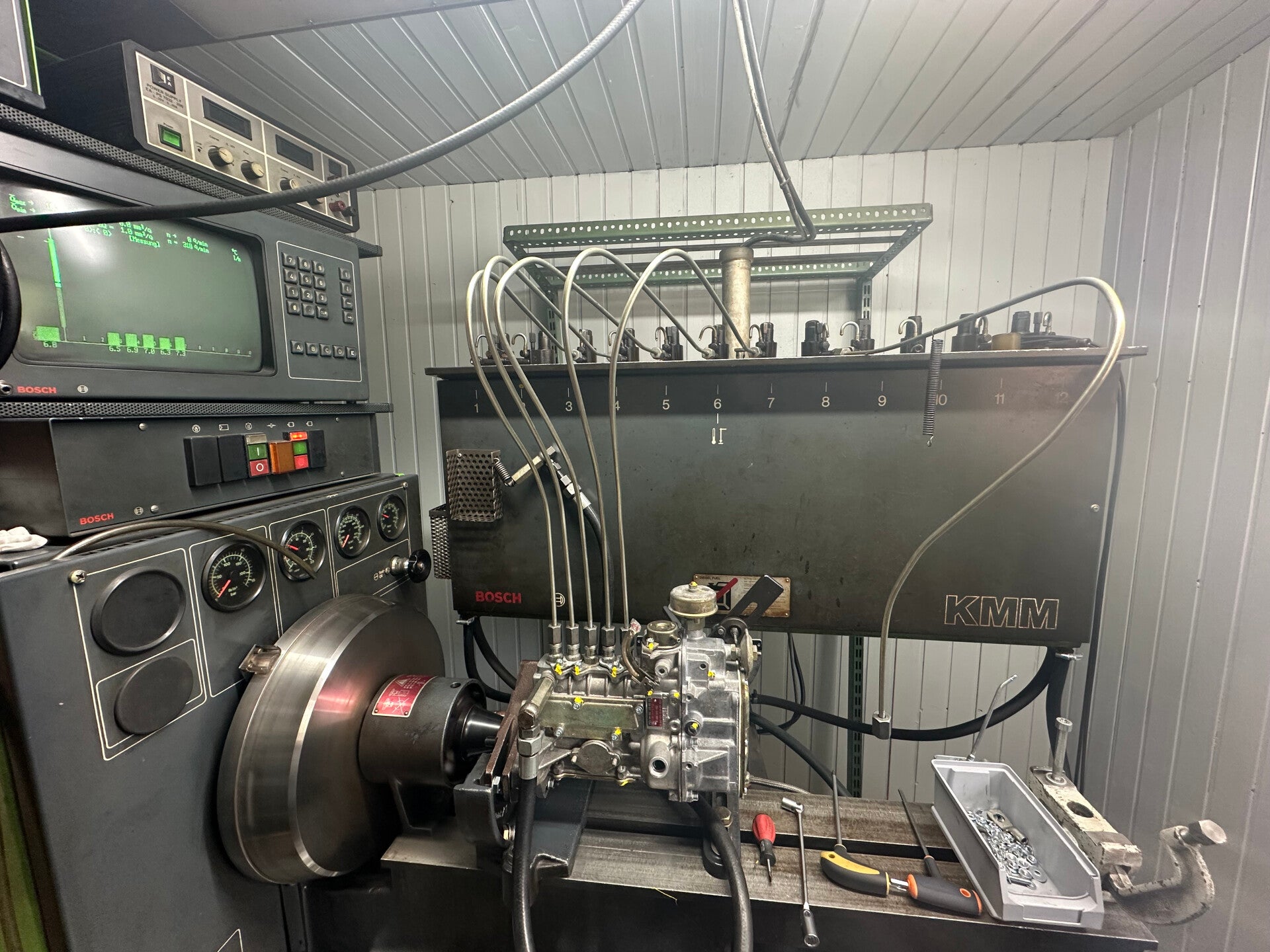

For this reason, every performance pump is built and calibrated according to the actual engine and its intended application.

Mechanical Bosch M-Pump Performance

The Bosch M-type inline injection pump is an extremely compact and robust mechanical injection system.

Each engine cylinder has its own pumping element inside the injection pump.

The pumping element generates the pressure required for injection and meters the amount of fuel delivered to the corresponding injector.

For performance applications, the standard fuel delivery of the original pump can eventually become a limiting factor.

Increasing engine airflow with:

a larger turbocharger
higher boost pressure
improved intercooling
cylinder head modifications
increased engine displacement

does not automatically increase engine power.

The additional air must be matched by the correct amount of fuel.

This is where a properly developed performance injection pump becomes an essential part of the engine concept.

Our Own 7.0 mm and 9.0 mm M-Pump Elements

We use our own series of 7.0 mm and 9.0 mm pump elements for performance-oriented Bosch M-type injection pumps.

The element diameter is an important parameter because it influences the effective pumping area and therefore the potential fuel delivery during a given pump stroke.

However, element diameter alone does not determine the quality of a performance injection pump.

A successful pump element must also work correctly with:

filling characteristics
control edge geometry
effective delivery stroke
injection duration
pump cam profile
engine speed
governor operation
delivery valves
injectors
injection lines

For this reason, we do not describe an injection pump simply as a “7 mm pump” or “9 mm pump” and assume that the number alone defines its performance.

The complete pump must be engineered and calibrated as a system.

7.0 mm Performance M-Pump

Our 7.0 mm element configuration is intended for applications where substantially increased fuel delivery is required while retaining strong drivability and controllability.

Typical applications include:

performance road vehicles
Mercedes G-Class conversions
off-road vehicles
OM602 turbo conversions
OM603 performance engines
OM605 SuperTurboDiesel projects
OM606 performance engines
mechanically converted OM605 and OM606 applications
engines designed for strong low- and mid-range torque

Depending on the engine, turbocharger and pump configuration, the 7.0 mm element offers sufficient fuel potential for substantial performance increases beyond standard injection pump output.

For six-cylinder OM603 and OM606 applications, this configuration is particularly interesting where the objective is a powerful road engine rather than maximum possible fuel quantity.

The actual engine power cannot be determined by element diameter alone.

A 7.0 mm pump can be calibrated for very different applications.

The same basic element size can therefore be used for an engine requiring:

clean road behaviour
strong low-rpm torque
moderate peak fuel quantity
high-performance road use
increased engine speed
or a more aggressive performance calibration

The calibration determines how the available potential is used.

9.0 mm High-Flow M-Pump

Our 9.0 mm pump element configuration is designed for applications with significantly higher fuel demand.

This specification is intended primarily for serious high-performance engines where the fuel requirement moves beyond the normal operating range of smaller performance elements.

Typical applications include:

high-output OM605 engines
high-output OM606 engines
OM606 SuperTurboDiesel projects
large turbocharger applications
competition vehicles
motorsport
drift applications
drag-oriented diesel projects
high-displacement OM606 engines
our OM606 D35 LA 3.5-litre engine concept
other individual high-fuel-demand applications

For suitable six-cylinder engine combinations, the 9.0 mm system provides the basis for 500+ hp class applications and significantly higher fuel-demand engine concepts, provided that the remainder of the engine is capable of using the available fuel.

This does not mean that every 9.0 mm injection pump should be calibrated to maximum delivery.

The advantage of the larger element is the available delivery capacity.

The final fuel quantity can then be matched to the engine.

A 9.0 mm pump can therefore be calibrated below its theoretical maximum when the application requires better drivability, lower thermal loading or additional adjustment reserve.

Why Larger Pump Elements?

A diesel engine has only a limited amount of crankshaft rotation available for the injection event.

As engine speed increases, the actual time available for injection becomes progressively shorter.

This becomes particularly important in high-output mechanical diesel engines.

To produce additional power, more fuel must be injected.

If the required fuel quantity can only be delivered by extending the injection event excessively, combustion can continue too far into the expansion stroke.

This can contribute to:

high exhaust gas temperature
inefficient combustion
excessive smoke
reduced efficiency
increased thermal loading

A larger pumping element can potentially deliver a required quantity of fuel within a shorter effective pumping period.

This is one of the fundamental reasons why larger elements are valuable in high-performance mechanical diesel injection systems.

However, bigger is not automatically better.

The element must still provide sufficient control at:

idle
low load
part load
boost transition
full load

This is why element design and pump calibration are just as important as maximum fuel capacity.

7.0 mm or 9.0 mm – Which Pump Is Right for My Engine?

We do not select the pump element according to a single horsepower number.

Instead, we consider the complete engine specification.

7.0 mm

Typically suitable for:

street-oriented performance engines
strong daily drivers
moderate to high power increases
early torque development
off-road and G-Class applications
applications where controllability is a major priority
performance engines that do not require the maximum possible fuel quantity

9.0 mm

Typically suitable for:

very high-output diesel engines
large turbocharger systems
motorsport applications
OM606 engines with very high airflow
high-displacement OM606 engines
applications requiring very high fuel delivery
engine concepts in the 500+ hp class and beyond
projects where additional injection pump reserve is required

The correct choice depends on the individual engine.

Element Diameter Does Not Equal Horsepower

A common mistake in performance diesel tuning is to assign a fixed horsepower figure to a specific pump element diameter.

For example:

7 mm = X horsepower

9 mm = Y horsepower

This is technically too simple.

Engine power depends on the complete combination of:

number of cylinders
fuel quantity per cylinder
engine displacement
engine speed
injection duration
injection timing
injector nozzle
injector opening pressure
turbocharger
boost pressure
intake air temperature
exhaust back pressure
cylinder head airflow
exhaust gas temperature
combustion efficiency

A six-cylinder OM606 naturally has a different total fuel requirement from a four-cylinder OM601, even if both injection pumps use elements of the same diameter.

For this reason, we specify and calibrate every performance M-pump according to the actual engine.

Four-, Five- and Six-Cylinder M-Pumps

The Mercedes OM60x engine family includes different cylinder configurations.

Our performance pump work therefore includes configurations for:

Four-cylinder engines

OM601 and suitable OM604 conversion projects

Five-cylinder engines

OM602 and OM605

Six-cylinder engines

OM603 and OM606

The total fuel requirement changes according to cylinder count and engine displacement.

A pump specification developed for a six-cylinder OM606 cannot simply be transferred numerically to a four-cylinder engine.

Each pump must be considered individually.

Mercedes OM601 Performance Injection Pump

The OM601 is a compact four-cylinder member of the Mercedes OM60x diesel engine family.

For turbo conversions and other performance applications, the mechanical injection pump can become an important part of the engine configuration.

Depending on the project, we can rebuild and modify suitable M-type injection pumps with increased fuel delivery.

Possible applications include:

turbocharged OM601 engines
off-road conversions
lightweight performance vehicles
custom Mercedes diesel projects

The required pump specification depends on displacement, turbocharger and intended engine power.

Mercedes OM602 Performance M-Pump

The OM602 five-cylinder diesel engine is particularly suitable for mechanical performance applications.

Different versions of the OM602 have been used in passenger vehicles, commercial vehicles and off-road applications.

For performance projects we can configure M-type injection pumps for:

standard-displacement OM602 engines
turbocharged OM602 engines
modified turbo systems
high-torque road engines
G-Class applications
off-road vehicles
individual performance builds

Our 7.0 mm elements are particularly interesting for strong street and torque-oriented OM602 applications.

For projects with substantially higher fuel demand, individual higher-capacity solutions can be considered.

Mercedes OM603 Performance M-Pump

The OM603 six-cylinder diesel engine is one of the classic platforms for mechanically controlled Mercedes diesel performance.

Its six-cylinder M-type injection pump provides an excellent basis for individually calibrated performance applications.

Depending on the project, we can configure OM603 pumps using our:

7.0 mm performance elements

9.0 mm high-flow elements

Applications range from responsive turbocharged road vehicles to substantially modified high-output diesel engines.

For an OM603 performance pump, we take into account:

standard or modified displacement
turbocharger size
desired boost response
required maximum fuel quantity
target engine speed
vehicle weight
transmission
intended road or competition use

Mercedes OM604 Mechanical Injection Pump Conversion

The OM604 requires special consideration.

Not every engine within the OM601–OM606 family was originally equipped with the same mechanical Bosch M-type injection system.

For suitable OM604 mechanical-conversion projects, an appropriate pump concept must therefore be selected according to the engine and installation.

This is not simply an injection pump rebuild.

A mechanical conversion requires consideration of:

pump compatibility
number of cylinders
mounting
pump drive
injection timing
governor configuration
throttle control
injector compatibility
required fuel delivery

OM604 projects are therefore evaluated individually.

Mercedes OM605 Performance M-Pump

The OM605 five-cylinder 20-valve diesel engine has become a popular platform for high-performance mechanical diesel conversions.

Depending on the original engine configuration, a mechanically governed M-type pump can be used or an appropriate mechanical conversion can be developed.

We build performance pump configurations for OM605 applications using our own element series.

Possible configurations include:

7.0 mm OM605 M-Pump

For responsive performance road engines, strong torque delivery and applications where good controllability remains important.

9.0 mm OM605 M-Pump

For engines with very high fuel demand, larger turbocharger systems and competition-oriented applications.

The injection pump is calibrated according to the five-cylinder engine configuration rather than simply using settings intended for an OM606.

Mercedes OM606 Performance M-Pump

The OM606 is one of the most internationally recognized platforms for mechanical high-performance diesel engines.

Originally produced in naturally aspirated and turbocharged configurations, the OM606 is now widely used for:

performance road vehicles
Mercedes G-Class conversions
off-road projects
drift vehicles
motorsport
marine applications
custom engine conversions
SuperTurboDiesel builds

For suitable projects, we configure mechanical M-type pumps with our own:

7.0 mm pump elements

and

9.0 mm pump elements

The correct configuration depends on the desired engine characteristics.

7.0 mm OM606 M-Pump – Performance with Drivability

For many road-oriented OM606 builds, maximum fuel quantity is not the only objective.

A useful performance engine must also work at:

idle
low engine speed
light throttle
part load
boost transition
full load

Our 7.0 mm configuration is therefore especially interesting for OM606 engines where strong performance and good drivability must be combined.

Typical projects include:

Mercedes G-Class
W124 and S124 conversions
W201 projects
W202 projects
W210 conversions
W140 applications
off-road vehicles
street performance cars
turbo upgrades

The pump can be calibrated according to the actual air supply and engine concept.

9.0 mm OM606 M-Pump – Maximum Fuel Delivery Potential

For substantially more demanding OM606 builds, our 9.0 mm element configuration provides significantly greater fuel delivery potential.

This specification is designed for engines with:

high airflow
large turbochargers
substantial boost capability
reinforced internal components
high power targets
high engine speeds where appropriate
increased displacement

It is particularly relevant for serious 500+ hp OM606 engine concepts and other applications where the available fuel capacity of a smaller pump would become a limiting factor.

The final motor output is determined by the entire engine system, not by the injection pump alone.

OM606 D35 LA and 9.0 mm Mechanical Injection Pump

Our OM606 D35 LA represents a particularly demanding application for mechanical diesel injection.

By increasing the displacement of the standard OM606 into the approximately 3.5-litre class, the air and fuel requirements of the engine change significantly.

Depending on the desired power and torque characteristics, a suitable mechanical M-pump is developed as part of the complete engine concept.

Our 9.0 mm element configuration provides substantial fuel delivery reserve for high-output versions of this engine.

The injection pump is matched to:

increased engine displacement
turbocharger system
desired low-rpm torque
maximum engine output
engine speed range
vehicle application

Our OM606 D35 LA engine concept can be configured for output levels of up to approximately 750 hp and up to 1,450 Nm, depending on the complete engine specification.

The injection pump is only one part of this system.

Full Injection Pump Rebuild Before Performance Calibration

A performance injection pump should not be created by simply installing larger elements into a worn pump.

Before performance calibration, the condition of the entire pump must be considered.

Depending on the pump and condition, our work includes:

complete disassembly
cleaning
inspection
wear assessment
replacement of seals
inspection of bearings and bushings
inspection of pump camshaft and roller components
inspection of control mechanisms
installation of the required pump elements
assembly
governor adjustment
test bench calibration

The objective is a mechanically sound injection pump before increased performance is requested from it.

Test Bench Calibration

Every performance injection pump must be calibrated.

Installing larger elements without accurate test bench adjustment is not sufficient.

On the injection pump test bench we can evaluate and adjust important parameters such as:

fuel delivery
delivery balance between cylinders
idle delivery
part-load behaviour
full-load delivery
governor operation
maximum-speed behaviour
boost enrichment characteristics where applicable

Equal delivery between cylinders is particularly important.

If one cylinder receives significantly more fuel than another, the thermal and mechanical loading of the engine can become uneven.

For a high-performance diesel engine, accurate cylinder-to-cylinder fuel distribution is therefore fundamental.

More Fuel Is Not Automatically More Power

A diesel injection pump can only provide the fuel.

The engine must be able to use it.

If substantially more fuel is injected than the available air can burn efficiently, the result can be:

excessive smoke
very high exhaust gas temperature
increased thermal loading
reduced efficiency
unnecessary fuel consumption

For this reason, maximum pump delivery should not automatically be used.

The correct fuel quantity is the quantity the complete engine can use efficiently at the intended operating point.

Injection Pump and Turbocharger Must Match

The injection pump and turbocharger are directly connected through the combustion process.

Increasing fuel delivery increases exhaust energy.

This can accelerate turbocharger response.

However, excessive fuel before sufficient boost is available can produce unnecessary smoke and thermal loading.

The relationship between:

off-boost fuel
boost enrichment
turbocharger response
full-load fuel
engine speed

must therefore be calibrated according to the vehicle.

A heavy Mercedes G-Class requires a different fuel delivery characteristic from a drift vehicle or high-rpm competition car.

Boost Enrichment and ALDA Configuration

Where the pump configuration allows it, boost-dependent enrichment can be incorporated into the performance calibration.

The objective is to provide additional fuel as the engine receives additional air from the turbocharger.

Correct boost enrichment can help combine:

clean low-load operation
controllable off-boost behaviour
strong turbocharger response
increased fuel delivery under boost

The boost enrichment system must be adjusted as part of the complete pump calibration.

Simply maximizing boost enrichment is not the objective.

Governor Calibration

The governor is one of the most important components of a mechanical performance injection pump.

It influences how the pump reacts to:

throttle position
engine load
engine speed

For performance applications, the governor configuration can have a significant influence on how the engine feels in the vehicle.

Depending on the project, the desired characteristics may include:

smooth road behaviour
strong low-speed torque
rapid throttle response
increased usable engine speed
motorsport-oriented response

For this reason, governor calibration must match the intended application.

Maximum Engine Speed

A performance injection pump can be configured for a different operating range from a standard production pump where the overall engine concept permits this.

However, increasing injection pump governor speed does not automatically mean that the engine itself is mechanically suitable for higher rpm.

Maximum safe engine speed depends on components such as:

pistons
connecting rods
crankshaft
valve train
valve springs
lubrication
engine balancing

The injection pump should therefore be calibrated according to the mechanically permissible engine speed.

Injector Nozzles and Opening Pressure

A high-performance injection pump cannot be considered separately from the injectors.

The injectors determine how the fuel delivered by the pump enters the combustion chamber.

Depending on the engine concept, relevant parameters include:

nozzle condition
nozzle specification
opening pressure
spray pattern
leakage
consistency between cylinders

For demanding applications, injection pump and injectors should therefore be considered together.

We can inspect, rebuild and test the corresponding diesel injectors as part of the complete injection system.

Pump Delivery Is More Important Than Element Diameter Alone

When comparing performance injection pumps, the most useful question is not:

“How large are the elements?”

The more useful questions are:

How much fuel does the pump actually deliver?

At which pump speed?

How evenly is the fuel distributed between cylinders?

How does delivery behave from low speed to full load?

How is the governor calibrated?

How does the pump behave with boost?

Two pumps using elements with a similar nominal diameter can behave very differently depending on element geometry and calibration.

This is why our focus is on the measured performance of the complete injection pump.

Built for the Engine – Not for a Catalogue Number

We do not believe in one universal “performance pump” specification for every Mercedes OM60x engine.

The injection pump should match the actual project.

Before building a pump, the following information is particularly useful:

engine type
exact engine version
engine displacement
number of cylinders
naturally aspirated or turbocharged
turbocharger type
desired horsepower
desired torque characteristics
vehicle
vehicle weight
transmission
intended maximum rpm
road, off-road, towing or motorsport use
injector configuration

This information allows us to determine whether a 7.0 mm or 9.0 mm pump configuration is technically appropriate.

Performance M-Pumps for Road Cars

A road engine requires more than maximum fuel.

Good road behaviour means the engine must remain controllable during:

starting
idling
city driving
light throttle
constant-speed cruising
acceleration
full load

For road applications we therefore concentrate on creating a pump calibration that provides the required performance without sacrificing the entire low-load operating range.

This is particularly important for:

Mercedes G-Class vehicles
daily driven OM605 and OM606 conversions
classic Mercedes performance projects
long-distance vehicles

Performance M-Pumps for Off-Road and Mercedes G-Class

Heavy off-road vehicles benefit from strong and controllable torque rather than an injection pump designed solely for maximum high-rpm fuel quantity.

For G-Class and off-road projects, the calibration can therefore place greater emphasis on:

early torque
controlled boost enrichment
throttle modulation
usable low-speed performance
broad operating range

The injection pump specification must also take into account vehicle weight and drivetrain configuration.

Performance M-Pumps for Motorsport

Competition applications can require a significantly different injection pump configuration.

Depending on the application, priorities may include:

maximum fuel delivery
rapid response
high engine speed
aggressive governor characteristics
large turbocharger systems
maximum high-rpm power

These configurations are treated differently from road-oriented pumps.

A competition calibration is therefore not automatically the correct choice for a street vehicle.

Mechanical Conversion for OM605 and OM606

Many OM605 and OM606 performance projects are converted from electronically controlled fuel injection to a fully mechanical injection pump.

A mechanical conversion can be attractive for applications where:

simplified engine electronics are desired
the engine is installed in another vehicle
an off-road application requires a simple mechanical system
a classic vehicle receives an OM605 or OM606
an individual high-performance diesel engine is being built

However, the conversion must be correctly engineered.

The mechanical pump must be matched to:

engine
drive system
injection timing
throttle operation
turbocharger
intended fuel quantity

The result should be a complete functioning injection system rather than simply an injection pump physically attached to the engine.

Why Mechanical Injection?

Mechanical diesel injection continues to offer significant advantages for certain specialised engine projects.

These can include:

direct mechanical control
no electronic fuel ECU required for pump operation
straightforward diagnosis
individual mechanical calibration
suitability for engine swaps
suitability for off-road and special vehicles
high performance potential

For many OM605 and OM606 conversions, this combination of simplicity and performance is one of the main reasons for choosing a mechanical M-type pump.

Injection Pump Rebuild and Performance Upgrade in One Workshop

Our performance pump service combines two areas that should not be separated:

professional injection pump rebuilding

and

performance calibration

A worn injection pump does not become a good high-performance pump simply because large elements have been installed.

We therefore approach each pump as a precision mechanical assembly.

Our work can include:

complete overhaul
component inspection
replacement of worn parts
installation of our 7.0 mm or 9.0 mm elements
governor setup
boost enrichment configuration
full test bench calibration
cylinder-to-cylinder delivery balancing
calibration according to the customer's engine

Our 7.0 mm and 9.0 mm Pump Elements

The development and use of our own element configurations gives us the possibility to build injection pumps according to the performance range required by the project.

7.0 mm

Designed primarily for applications where increased performance must be combined with good fuel control and road usability.

9.0 mm

Designed for high-flow applications where significantly more delivery capacity is required.

The element is only the starting point.

The final quality of the pump depends on how the entire injection pump is built and calibrated around that element.

Frequently Asked Questions

Can you build a performance M-pump for an OM606?

Yes.

We build mechanically governed performance injection pumps for OM606 applications using our own 7.0 mm and 9.0 mm element configurations.

Which pump element is best for an OM606?

That depends on the engine.

For many road-oriented performance engines, 7.0 mm offers a very useful performance range.

For very high-output applications with substantially higher fuel demand, our 9.0 mm elements provide additional delivery capacity.

Can a 9.0 mm OM606 pump support more than 500 hp?

Our 9.0 mm configuration is intended for high-fuel-demand engine concepts, including suitable six-cylinder applications in the 500+ hp class and beyond.

Actual engine output depends on the complete engine, turbocharger, injectors and calibration.

Does a 9.0 mm pump always inject more fuel than a 7.0 mm pump?

It has significantly greater theoretical delivery potential, but the actual fuel quantity is determined by the calibration.

A large element does not have to be operated at maximum delivery.

Can you build a mechanical pump for an OM605?

Yes.

Five-cylinder performance pump configurations for OM605 applications can be built and calibrated according to the engine specification.

Can you modify an OM602 or OM603 pump?

Yes.

OM602 and OM603 M-type injection pumps can be rebuilt and performance-calibrated depending on pump type and condition.

Can an OM604 be converted to mechanical injection?

Suitable OM604 mechanical-conversion projects can be evaluated individually.

The conversion requires more than simply changing the injection pump and must be assessed according to the engine and installation.

Do you calibrate the injection pump on a test bench?

Yes.

Performance injection pumps are calibrated and the delivery of the individual pumping sections is balanced on the injection pump test bench.

Can you also rebuild the injectors?

Yes.

The injection pump and injectors can be treated as a complete diesel injection system.

Do I need to send my existing injection pump?

A suitable customer pump can be used as the basis for an upgrade after inspection.

Availability of complete exchange or replacement pump configurations depends on the required pump type and current stock.

International Performance Injection Pump Service

We work with customers, workshops and engine builders internationally.

Injection pumps can be sent to our workshop in Germany for:

inspection
overhaul
performance modification
installation of 7.0 mm elements
installation of 9.0 mm elements
calibration
individual project setup

For international orders, please include:

customer or company name
country
engine type
injection pump type if known
photographs of the pump identification
desired engine output
turbocharger specification
intended application
customer order number or project reference where applicable

Request a Performance M-Pump

For an initial technical recommendation, please provide:

Engine: OM601 / OM602 / OM603 / OM604 / OM605 / OM606
exact engine version if known
engine displacement
current injection pump
naturally aspirated or turbocharged
turbocharger type
desired horsepower
desired torque characteristics
desired maximum engine speed
vehicle
transmission
intended use
road / off-road / G-Class / towing / motorsport / marine
existing injector specification if known

Based on these details, we can determine the appropriate injection pump concept and whether the 7.0 mm or 9.0 mm element configuration is the better technical solution.

Performance Mercedes M-Pumps by Einspritzpumpen Manufaktur NRW

A high-performance mechanical diesel injection pump is not defined by the largest possible pump element.

It is defined by how precisely the complete injection pump delivers the required fuel under the actual operating conditions of the engine.

Our approach combines:

professional Bosch M-pump rebuilding

our own 7.0 mm and 9.0 mm pump elements

individual governor setup

boost-dependent fuel calibration

test bench calibration

injector service

and

complete Mercedes OM60x engine experience

for performance applications based on the OM601, OM602, OM603, OM604, OM605 and OM606 engine families.

From a responsive mechanical OM602 or OM603 road engine to a high-output OM605 or 500+ hp OM606, the injection pump is built around the engine and its intended application.

Einspritzpumpen Manufaktur NRW – Performance mechanical diesel injection, individually built and test-bench calibrated in Germany.
