Bosch P10 Fuel Injection Pump Repair, Overhaul & Calibration

Specialist Workshop for Bosch P10 Mechanical Inline Fuel Injection Pumps for Deutz / MWM Large Diesel Engines

Einspritzpumpen Manufaktur NRW is an independent specialist workshop in Germany focusing on the inspection, overhaul, repair, reconstruction and test-bench calibration of Bosch P10 mechanical inline fuel injection pumps used in medium- and large-bore diesel engines.

Our principal Bosch P10 applications include injection pumps installed on:

• MWM / Deutz TBD604

• MWM / Deutz TBD620

• MWM / Deutz TCD2020

• marine propulsion engines

• marine auxiliary engines

• industrial diesel engines

• generator sets

• stationary power-generation engines

• emergency power installations

• pump and compressor drives

• and other heavy-duty diesel applications

Many of these engines have been operating reliably for decades. While the engines themselves often remain technically and economically valuable, availability of complete replacement injection pumps and individual original components is becoming increasingly limited.

For operators, maintenance departments, engine rebuilders and technical procurement teams, professional overhaul of the original injection equipment can therefore become an important part of an engine life-extension and obsolescence-management strategy.

Our objective is not simply to make an injection pump operate again.

The objective is to restore a technically reliable, mechanically sound and reproducibly calibrated fuel injection pump suitable for continued operation on its specific engine application.

Bosch P10 Injection Pumps for Deutz and MWM Engines

Bosch P10 pumps are high-capacity mechanical inline fuel injection pumps designed for demanding medium- and large-engine applications.

Each individual pump section supplies one engine cylinder and must deliver a precisely defined quantity of fuel according to the corresponding pump and engine specification.

Correct fuel delivery across all cylinders is therefore essential for:

• balanced cylinder output

• stable combustion

• uniform exhaust-gas temperatures

• correct engine performance

• predictable fuel consumption

• reliable load acceptance

• controlled mechanical and thermal loading

• and long-term engine reliability

A Bosch P10 injection pump should therefore be regarded as a complete precision fuel-metering system rather than as an assembly that can be properly repaired simply by replacing seals.

Bosch P10 Applications – MWM / Deutz TBD604

The MWM / Deutz TBD604 engine family was produced in several cylinder configurations:

• inline 6-cylinder

• V8

• V12

• V16

The TBD604 series uses the lower-rated Bosch P10 injection-pump system.

The exact pump configuration depends on factors such as:

• cylinder arrangement

• engine version

• engine output

• rated speed

• application

• direction of rotation

• drive arrangement

• and technical production status

For this reason, the description “TBD604 injection pump” alone is not sufficient for reliable identification.

The complete Bosch pump designation and part number should always be used.

Bosch P10 Applications – MWM / Deutz TBD620

The MWM / Deutz TBD620 engine family includes:

• V8

• V12

• V16

Depending on the specific engine version and output, TBD620 engines can be equipped with either Bosch P10 or Bosch P9 fuel injection pumps.

The pump series must therefore be identified from the actual injection pump and engine data rather than from the engine-family designation alone.

Relevant factors include:

• exact engine designation

• number of cylinders

• rated output

• rated engine speed

• application

• Bosch pump type

• Bosch part number

• and the information on the original identification plate

Bosch P10 Applications – Deutz / MWM TCD2020

The Deutz / MWM TCD2020 family was also produced in:

• V8

• V12

• V16 configurations

Depending on engine version and performance level, TCD2020 engines may use Bosch P10 or Bosch P9 injection equipment.

Again, identification should always be based on the actual pump specification.

A visually similar pump is not automatically technically interchangeable.

Correct Identification of a Bosch P10 Injection Pump

Correct identification is one of the most important steps before overhaul, spare-parts sourcing or calibration.

Bosch P10 pumps can differ in:

• number of pump sections

• direction of rotation

• pump-element specification

• fuel-delivery range

• camshaft design

• cam profile

• drive configuration

• control mechanism

• mounting arrangement

• rated pump speed

• associated engine output

• engine application

• and production version

A Bosch P10 injection pump therefore cannot be reliably identified by external appearance alone.

For an initial technical assessment, we recommend providing:

• complete Bosch pump designation

• Bosch part number

• MWM / Deutz part number

• exact engine type

• number of cylinders

• rated engine output

• rated engine speed

• engine serial number, if available

• direction of rotation, if known

• application of the engine

• clear photographs of the complete pump

• and a clear photograph of the identification plate

Typical Bosch P10 Pump Types

Frequently requested Bosch P10 pump types include:

PE8/10/150/100LS50

PE8/10/150/100LS51

PE8/10/150/100LS52

PE8/10/150/100LS53

Further documented Bosch P10 configurations include:

FA-PE6/10/160/300RS34

FA-PE12/10/160/100LS43

These designations represent only a selection of the Bosch P10 versions used in marine, industrial and stationary large diesel engines.

If your exact pump designation is not listed on this page, please send us the complete identification information for individual assessment.

Alternative Bosch P10 Type-Number Formats

Historical spare-parts catalogues, workshop documentation, ERP systems, databases and online listings frequently use different formatting for the same Bosch pump designation.

For example:

PE8/10/150/100LS53

may also be documented or searched as:

• PE 8/10/150/100 LS53

• PE8 10 150 100 LS53

• PE8-10-150-100-LS53

• PE810150100LS53

Similarly:

FA-PE6/10/160/300RS34

may appear as:

• FA PE6/10/160/300RS34

• FA-PE6-10-160-300-RS34

• FAPE610160300RS34

and:

FA-PE12/10/160/100LS43

may appear as:

• FA PE12/10/160/100LS43

• FA-PE12-10-160-100-LS43

• FAPE1210160100LS43

Regardless of the written format, definitive identification must be based on the original pump data, engine application and actual technical configuration.

Bosch P10 Part Numbers

Bosch P10 injection pumps can also be identified by their Bosch original part numbers.

Relevant references include:

• 9 410 365 828

• 9 410 365 829

• 9 410 365 830

• 9 410 365 831

• 9 400 365 813

• 9 400 365 814

• 9 410 365 813

• 9 410 365 814

Depending on the database or historical documentation, these numbers may also appear without spaces, for example:

• 9410365828

• 9410365829

• 9410365830

• 9410365831

• 9400365813

• 9400365814

• 9410365813

• 9410365814

The Bosch part number is an important identification reference, but it should not always be considered in isolation.

The complete pump designation and actual engine configuration remain decisive.

MWM / Deutz Part Numbers

Relevant MWM and Deutz references include:

• 12302170

• 12302171

• 12302838

• 12302839

• 12137080

Alternative documentation and search formats may include:

12302170

• 1230 2170

• 1230-2170

12302171

• 1230 2171

• 1230-2171

12302838

• 1230 2838

• 1230-2838

12302839

• 1230 2839

• 1230-2839

12137080

• 1213 7080

• 1213-7080

These alternative formats are particularly relevant when searching historical inventory systems, spare-parts databases or archived technical documentation.

Bosch / MWM / Deutz P10 Reference Examples

Known reference combinations include:

MWM / Deutz Part No.Bosch Pump TypeBosch Part No.12302838PE8/10/150/100LS529 410 365 83112302839PE8/10/150/100LS539 410 365 83012302171PE8/10/150/100LS509 410 365 82912302170PE8/10/150/100LS519 410 365 828

The references listed here should support identification and technical communication.

They should not be interpreted as universal automatic cross-references without verification of the complete pump and engine specification.

When Should a Bosch P10 Injection Pump Be Inspected?

A pump assessment can become necessary because of operating problems, visible damage, prolonged storage or as part of a planned engine overhaul.

Typical indications include:

• external fuel leakage

• lubricating-oil leakage

• restricted control-rack movement

• seized or partially seized pump sections

• corrosion after extended storage

• uneven engine operation

• unequal cylinder output

• unequal exhaust-gas temperatures

• reduced engine performance

• increased fuel consumption

• poor starting behaviour

• excessive smoke

• irregular fuel delivery

• contamination in the fuel system

• water damage

• damage after extended inactivity

• evidence of previous improper repair

• or overhaul of the associated engine

These symptoms do not automatically prove that the injection pump is the only cause of the problem.

A technically correct engine diagnosis should also consider:

• injectors

• nozzle holders

• fuel supply

• injection timing

• compression

• general engine condition

• and available operating data

Professional Bosch P10 Injection Pump Overhaul

A complete P10 overhaul involves considerably more than replacing gaskets or shaft seals.

The internal condition of a mechanical injection pump cannot be reliably evaluated from its exterior.

Wear can occur in critical components while the pump still appears complete and mechanically movable.

A technically appropriate overhaul therefore begins with controlled dismantling, cleaning, inspection and dimensional assessment.

1. Incoming Inspection and Documentation

Before dismantling, the injection pump is documented in the condition in which it arrives.

Relevant information includes:

• Bosch pump type

• Bosch part number

• MWM / Deutz reference

• number of pump sections

• direction of rotation

• drive arrangement

• visible damage

• corrosion

• fuel leakage

• oil leakage

• missing components

• previous repair work

• and available engine information

Whenever possible, photographs and identification data should already be provided before shipping.

2. Initial Functional Assessment

Where the condition of the pump permits, an initial mechanical assessment can be performed.

This may include checking:

• free mechanical movement

• control-rack movement

• visible leakage

• drive condition

• seized pump sections

• and obvious mechanical irregularities

This first assessment does not replace complete dismantling, but it can provide valuable information about the original fault condition.

3. Controlled Dismantling

The injection pump is dismantled into its individual functional assemblies and components.

During this process, attention is paid to:

• component orientation

• installation positions

• existing adjustments

• relationship between individual pump sections

• previous modifications

• visible wear

• and evidence of earlier repairs

Components assigned to individual pumping sections remain clearly identified throughout the inspection process.

4. Cleaning and Preparation for Inspection

Accurate dimensional inspection is only possible after contamination and deposits have been removed.

Depending on the component and condition, cleaning removes:

• diesel residue

• lubricating oil

• deposits

• corrosion products

• dirt

• wear particles

• and contamination caused by previous damage

Cleaning is therefore part of the technical inspection process, not merely a cosmetic operation.

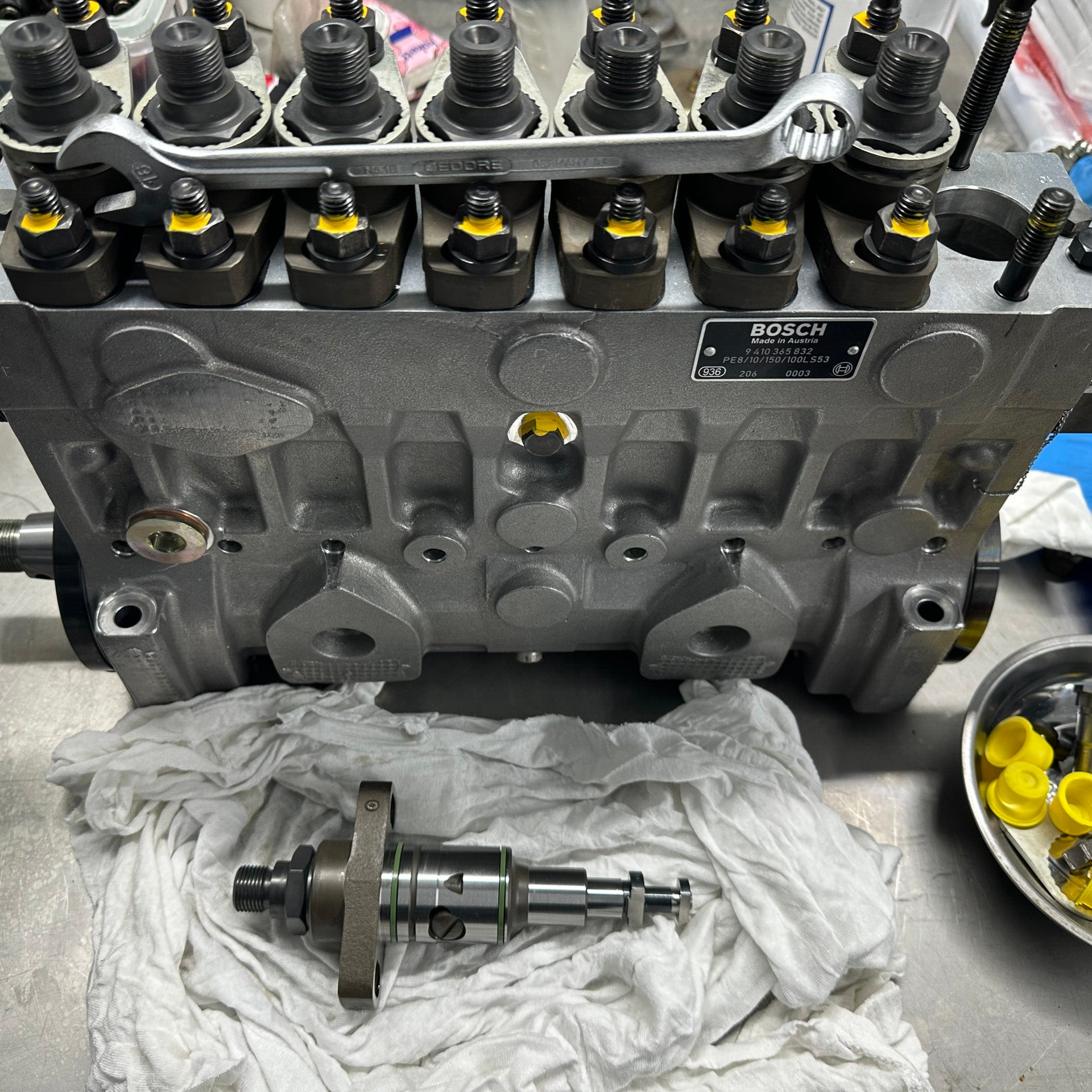

5. Precision Inspection and Measurement

Depending on the specific P10 version, relevant components can include:

• plunger-and-barrel assemblies

• pump plungers

• pump barrels

• delivery valves

• camshaft

• cam profiles

• roller tappets

• tappet rollers

• bearings

• bushes

• shafts

• control rack

• control sleeves

• actuating components

• springs

• adjustment mechanisms

• housing bores

• sealing surfaces

• and mechanical fits

Possible damage includes:

• dimensional wear

• corrosion

• pitting

• damaged running surfaces

• excessive bearing play

• restricted movement

• incorrect component combinations

• and damage resulting from previous repair work

Components are reused only when their condition allows technically reliable continued operation.

6. Repair, Replacement and Restoration of Components

Worn, corroded or damaged components are repaired or replaced where technically appropriate.

Depending on the pump version, relevant components may include:

• pump elements

• delivery valves

• bearings

• bushes

• rollers

• needle bearings

• shaft seals

• O-rings

• gaskets

• springs

• control components

• actuating components

• connection parts

• and pump-specific mechanical components

Where original components are no longer commercially available, alternative technical solutions can be evaluated.

Reverse Engineering of Obsolete Bosch P10 Components

One of the increasing challenges with historical Bosch P10 pumps is component obsolescence.

Original replacement parts may be available only in limited quantities, as new-old stock, or may have disappeared completely from the normal supply chain.

An unavailable component does not automatically mean that the complete injection pump is beyond repair.

Where technically and economically feasible, an existing original component can be evaluated for reconstruction.

Depending on the component, the process can include:

• precision measurement

• dimensional documentation

• functional analysis

• CAD reconstruction

• determination of tolerances and fits

• material evaluation

• assessment of hardness requirements

• assessment of heat treatment

• surface-quality requirements

• consideration of lubrication conditions

• mechanical-load analysis

• thermal-load analysis

• production by specialised manufacturing partners

• dimensional inspection

• and subsequent functional testing

Not every component can or should be reproduced.

Highly loaded or technically critical parts are only considered for reproduction when the relevant manufacturing and functional requirements can be sufficiently defined and verified.

The objective is always a technically responsible repair solution rather than reproduction at any cost.

Bosch P10 Spare Parts and Component Support

Our workshop maintains a stock of various components for historical mechanical injection systems.

Depending on the individual P10 version, required components may include:

• pump elements

• plunger-and-barrel assemblies

• delivery valves

• bearings

• bushes

• tappet rollers

• seals

• shaft seals

• O-rings

• springs

• control components

• actuating components

• connection parts

• housing components

• and specially manufactured components

Components that are no longer immediately available can be evaluated for:

• sourcing from existing stocks

• professional reconditioning

• technically permissible repair

• or reproduction where feasible

For operators of legacy diesel engines, this component knowledge can be just as important as the actual pump overhaul.

7. Precision Reassembly

After component evaluation and repair, the injection pump is reassembled under controlled workshop conditions.

Relevant checks include:

• correct component allocation

• component orientation

• bearing positions

• mechanical clearances

• control-rack movement

• interaction between pump sections

• sealing surfaces

• and basic mechanical adjustment

Only after correct mechanical assembly can meaningful fuel-delivery testing begin.

8. Bosch P10 Test-Bench Operation and Calibration

Mechanical overhaul alone does not complete the repair.

The injection pump must subsequently be operated, tested and calibrated on suitable injection-pump test equipment.

Our workshop uses Bosch EPS test equipment for mechanical inline fuel injection pumps, as well as specialised test equipment for particularly large multi-cylinder injection systems.

Depending on pump configuration and available technical reference data, testing can include:

• fuel delivery from each pump section

• cylinder-to-cylinder delivery comparison

• behaviour at defined pump speeds

• delivery repeatability

• control-rack movement

• mechanical actuation

• shut-off behaviour where applicable

• leakage

• and interaction with the corresponding control system

The pump is released only after the relevant mechanical functions and fuel-delivery values have been verified.

Why Fuel-Delivery Calibration Matters

Accurate calibration directly influences engine operation.

Unequal delivery between individual pump sections can contribute to:

• uneven cylinder loading

• unequal exhaust-gas temperatures

• irregular combustion

• reduced engine performance

• increased fuel consumption

• smoke formation

• increased thermal loading

• increased mechanical loading

• poor load acceptance

• and reduced engine service life

This is particularly important on large V8, V12 and V16 engines.

The objective of calibration is therefore not simply to achieve fuel delivery.

It is to achieve defined and reproducible fuel delivery across all relevant pump sections according to the corresponding pump and engine specification.

Dedicated 16-Cylinder Fuel Injection Pump Test Bench

For particularly large injection systems, Einspritzpumpen Manufaktur NRW operates a dedicated test bench for injection systems with up to 16 cylinders.

This test equipment was developed specifically for large mechanical injection pumps and includes the capability required for substantial multi-cylinder assemblies.

Depending on pump configuration, this allows us to work with systems beyond the normal range of conventional automotive diesel workshops.

This is particularly relevant for operators of large V16 engines and other industrial or marine installations using mechanically coupled injection-pump assemblies.

V16 Tandem Pump Testing and Synchronisation

Some V16 diesel engines use two mechanically coupled injection pumps which operate together as one complete fuel-injection system.

In such applications, testing each pump only as an isolated unit does not necessarily provide a complete assessment of how both pumps interact in the engine installation.

Where pump design, mounting arrangement and available technical data permit, our process can include:

1. individual inspection of both pumps

2. individual overhaul where required

3. individual calibration

4. installation as a complete tandem assembly

5. joint test-bench operation

6. comparison of all pump sections

7. mechanical synchronisation of both injection pumps

Correct synchronisation can contribute to:

• uniform fuel delivery across all cylinders

• reduced cylinder-to-cylinder deviation

• balanced engine output

• uniform exhaust-gas temperatures

• stable engine operation

• reliable load acceptance

• and long-term operating reliability

For complete tandem systems, photographs and dimensional information should be provided before shipment so that mounting and testing requirements can be assessed.

Obsolescence Management for Legacy Injection Systems

For many operators, the main challenge is no longer identifying the basic pump design.

The challenge is maintaining an injection system whose original supply chain has changed or disappeared.

Typical procurement problems include:

• discontinued components

• unavailable complete replacement pumps

• extended lead times

• remaining new-old-stock components

• used parts of unknown condition

• incomplete historical documentation

• obsolete manufacturer references

• and engine-specific configurations with no straightforward modern replacement

This is particularly relevant to engines that remain technically useful but are no longer supported by a conventional new-parts supply chain.

Repair as Part of an Engine Life-Extension Strategy

A failed or worn injection pump does not automatically mean that an otherwise serviceable engine has reached the end of its useful life.

Professional overhaul of the existing original injection system can help avoid:

• premature engine replacement

• expensive system conversion

• extensive mechanical modifications

• unnecessary capital expenditure

• long procurement lead times

• increased dependence on rare replacement units

• and avoidable plant or vessel downtime

For many industrial, marine and power-generation applications, this is not merely a question of repair cost.

It is a question of asset availability and lifecycle cost.

Marine Applications

Our Bosch P10 service is relevant to:

• vessel operators

• shipowners

• ship management companies

• fleet technical departments

• marine engineering companies

• marine service providers

• engine rebuilders

• auxiliary-engine operators

• generator operators

• and workshops maintaining legacy marine diesel engines

Marine customers frequently operate engines whose original injection equipment is still technically suitable but increasingly difficult to replace.

Preserving a serviceable original injection system can therefore be an important part of maintaining vessel availability.

Industrial and Power-Generation Applications

Bosch P10 pumps are also used in stationary and industrial applications such as:

• generator sets

• emergency power installations

• stationary power plants

• industrial diesel drives

• pumping equipment

• compressor drives

• railway applications

• mining equipment

• and continuously operated industrial machinery

The operating requirements of these applications can differ substantially.

A marine propulsion engine, generator set and industrial drive may use mechanically related pump types but require different:

• fuel-delivery quantities

• speed characteristics

• load behaviour

• control settings

• and calibration specifications

Calibration must therefore be based on the exact pump and engine configuration rather than only on the general Bosch P10 family.

Support for Maintenance Engineers and Mechanics

For maintenance engineers and workshop personnel, the key question is normally:

Can this exact injection pump still be repaired and correctly calibrated?

For an initial assessment, please provide:

• pump designation

• Bosch part number

• MWM / Deutz reference

• engine model

• photographs

• nameplate information

• operating symptoms

• and known repair history

This allows us to determine the pump configuration and evaluate the next technical steps.

Support for Maintenance Planners and Technical Dispatch

Maintenance planners often have a different objective.

The issue is not simply repairing a failed pump, but reducing the operational risk associated with a critical component.

Relevant questions may include:

• Can an existing spare pump be overhauled preventively?

• Should an original spare unit be prepared before failure of the operating pump?

• Can pump overhaul be coordinated with a planned engine overhaul?

• Which components are becoming critical because of obsolescence?

• Should an existing injection pump be retained as a strategic spare?

For installations with high downtime costs, preventive overhaul can therefore become part of a broader maintenance strategy.

Support for Technical Procurement

Technical purchasing departments frequently become involved when a historical Bosch, MWM or Deutz part number can no longer be sourced as a new component.

The internal ERP system may still contain the original number even though the normal supplier structure no longer exists.

In this situation, procurement should not necessarily be limited to locating another complete replacement pump.

Assessment and overhaul of the existing original unit can represent an alternative sourcing strategy.

Potential advantages include:

• preservation of the existing engine configuration

• reduced dependence on scarce complete replacement units

• avoidance of unnecessary system conversion

• retention of the original fuel-injection architecture

• improved control of critical spare availability

• and extension of the useful life of existing assets

For procurement teams, accurate part-number identification is therefore closely connected with obsolescence management.

Support for Technical Management and Asset Owners

For a technical manager, superintendent, fleet manager or plant operator, the injection pump is only one component within a much larger asset.

The relevant questions are therefore often:

• How can the existing engine remain operational?

• How can unplanned downtime be reduced?

• Which components should be maintained as strategic spares?

• Can the original injection system be preserved?

• Can major capital expenditure be postponed or avoided?

• Is overhaul economically preferable to system replacement?

• How can the service life of the existing installation be extended?

In many applications, the indirect cost of a failed injection pump can substantially exceed the cost of repairing the pump itself.

Support for Engine Rebuilders and Diesel Service Companies

We also work with professional engine rebuilders, diesel workshops and specialist service companies requiring support with Bosch P10 fuel injection equipment.

Cooperation can be particularly useful when:

• suitable large-pump test equipment is not available locally

• the pump lies outside the workshop's normal product range

• historical calibration information must be evaluated

• obsolete components require specialist support

• large multi-cylinder systems require accurate calibration

• or complete tandem pump assemblies must be assessed

Technical communication can be based on the Bosch pump designation, Bosch number, MWM / Deutz reference and engine information.

International Bosch P10 Repair Service

Einspritzpumpen Manufaktur NRW is based in North Rhine-Westphalia, Germany and supports customers throughout Europe and internationally.

International enquiries are welcome from:

• engine operators

• shipping companies

• ship management companies

• industrial companies

• power-generation businesses

• technical procurement departments

• engine rebuilders

• diesel service companies

• specialist workshops

• and spare-parts organisations

Bosch P10 injection pumps and associated components can be sent to our workshop by prior arrangement.

Before Shipping Your Bosch P10 Injection Pump

Please contact us before dispatch whenever possible.

For initial identification, send:

• photographs of the complete pump from several angles

• photograph of the complete identification plate

• Bosch pump designation

• Bosch part number

• MWM / Deutz part number

• exact engine designation

• number of cylinders

• rated engine output

• rated engine speed

• direction of rotation, if known

• application

• description of the fault

• previous repair information

• storage period, where applicable

• and available technical documentation

Please do not dismantle or unnecessarily clean the pump before technical assessment.

Its original condition can provide useful diagnostic information relating to leakage, corrosion, contamination, component failure or previous repair work.

For shipments from outside the European Union, please contact us before dispatch so that the shipment can be correctly prepared and documented as equipment sent for repair.

Commercial and Administrative References

For international commercial customers, the following information can also be included with the shipment:

• company name

• country

• purchase-order number

• work-order number

• job number

• commission reference

• vessel name

• engine number

• internal asset number

This allows the injection pump to be clearly assigned to the correct customer, engine and internal order when it arrives at our workshop.

Technical Assessment and Quotation

Photographs and identification data often allow us to identify the pump and provide an initial assessment.

However, the internal condition of a Bosch P10 injection pump cannot be reliably determined from photographs alone.

A final repair scope and technically substantiated quotation may therefore require:

• dismantling

• cleaning

• dimensional inspection

• component assessment

• and verification of required spare-part availability

This prevents assumptions being made about the condition of internal components that cannot be evaluated externally.

Bosch P10 Fuel Injection Pump Specialist in Germany

Bosch P10 mechanical inline fuel injection pumps remain essential components in many MWM and Deutz large diesel engines operating worldwide.

As complete replacement pumps and original individual components become increasingly difficult to obtain, continued operation depends increasingly on:

• correct pump identification

• technical knowledge of historical injection systems

• dimensional inspection

• component restoration

• specialist spare-parts sourcing

• reverse-engineering capability

• accurate mechanical assembly

• suitable test-bench equipment

• and reproducible fuel-delivery calibration

Einspritzpumpen Manufaktur NRW combines these capabilities to support the continued operation of existing marine, industrial and power-generation diesel engines.

Request a Bosch P10 Injection Pump Assessment

If you require repair, overhaul, test-bench calibration or technical identification of a Bosch P10 fuel injection pump, send us:

1. A clear photograph of the complete pump

2. A clear photograph of the Bosch identification plate

3. The complete Bosch pump designation

4. The Bosch and MWM / Deutz part numbers

5. The exact engine type and application

6. A short description of the problem

Even if your exact Bosch or MWM / Deutz number is not listed on this page, the injection pump can be assessed individually.

Bosch P10 fuel injection pump repair, overhaul and calibration for MWM / Deutz TBD604, TBD620 and TCD2020 engines – from technical identification and mechanical restoration to precision test-bench calibration and support for obsolete components.
